Safe capture of condensate and leaking coolant

Battery Pack Liquid Absorbers for climate and moisture management in lithium-ion battery packs

Battery packs are the core components of mobile and stationary lithium-ion energy storage systems. They are used in automotive and industrial applications. The performance and lifespan of these components are largely responsible for the efficiency of the entire energy storage system. Moisture inside the packs can significantly impair both function and lifespan. Battery Pack Liquid Absorbers from Freudenberg Performance Materials prevent this by reliably absorbing liquids inside the battery pack.

Energy Battery Pack Liquid Absorber Humidity

Key Features

  • Fast liquid absorption
  • Excellent retention capacity
  • Absorption capacity of up to 20l/m2
  • Tunable absorption performance through customizable design
  • Customizable in size and shape
  • Re-drying possible after condensate absorption
  • UL 94 HB

Key Benefits

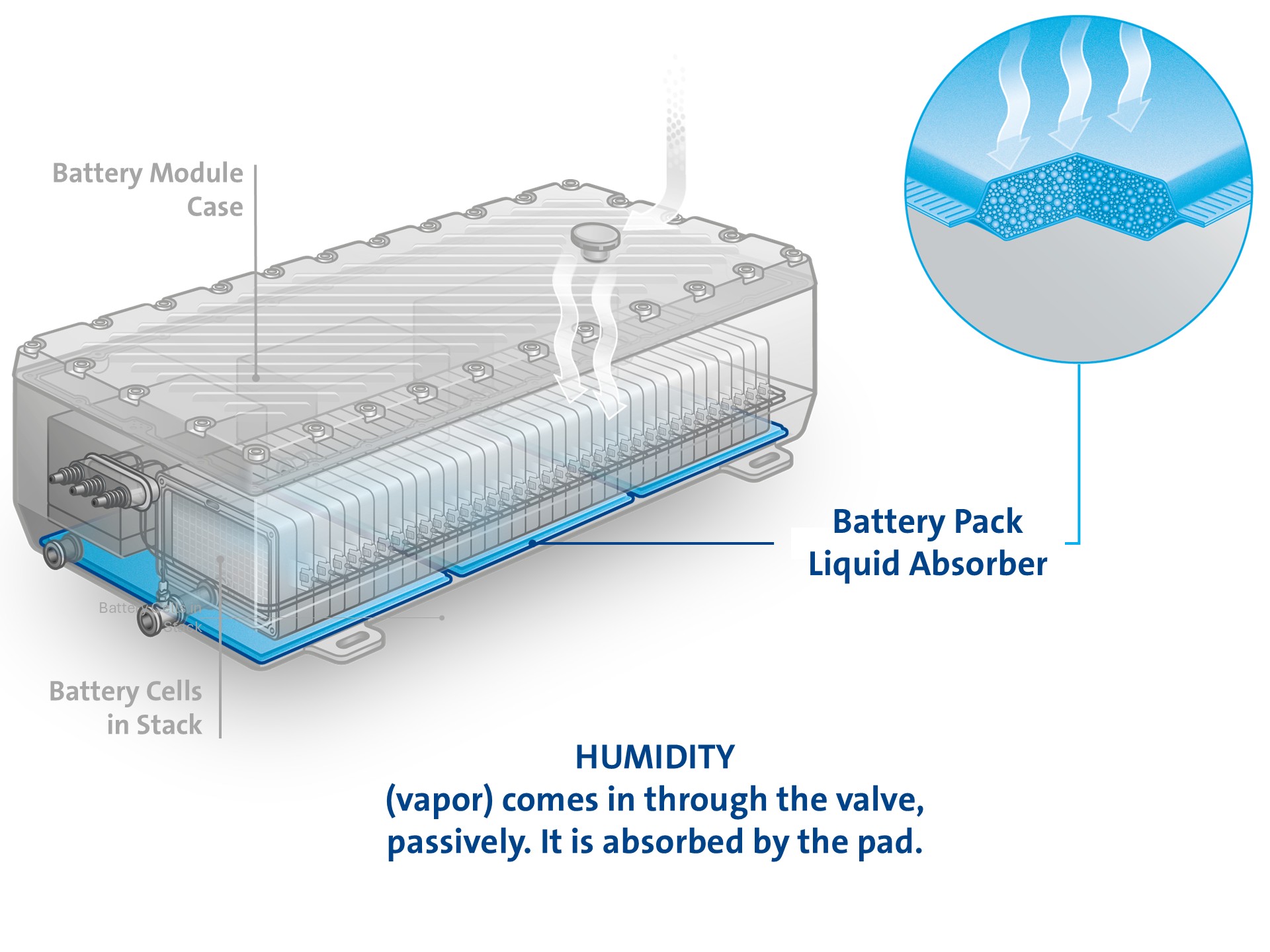

  • Passive humidity control and condensation prevention for extended lifespan

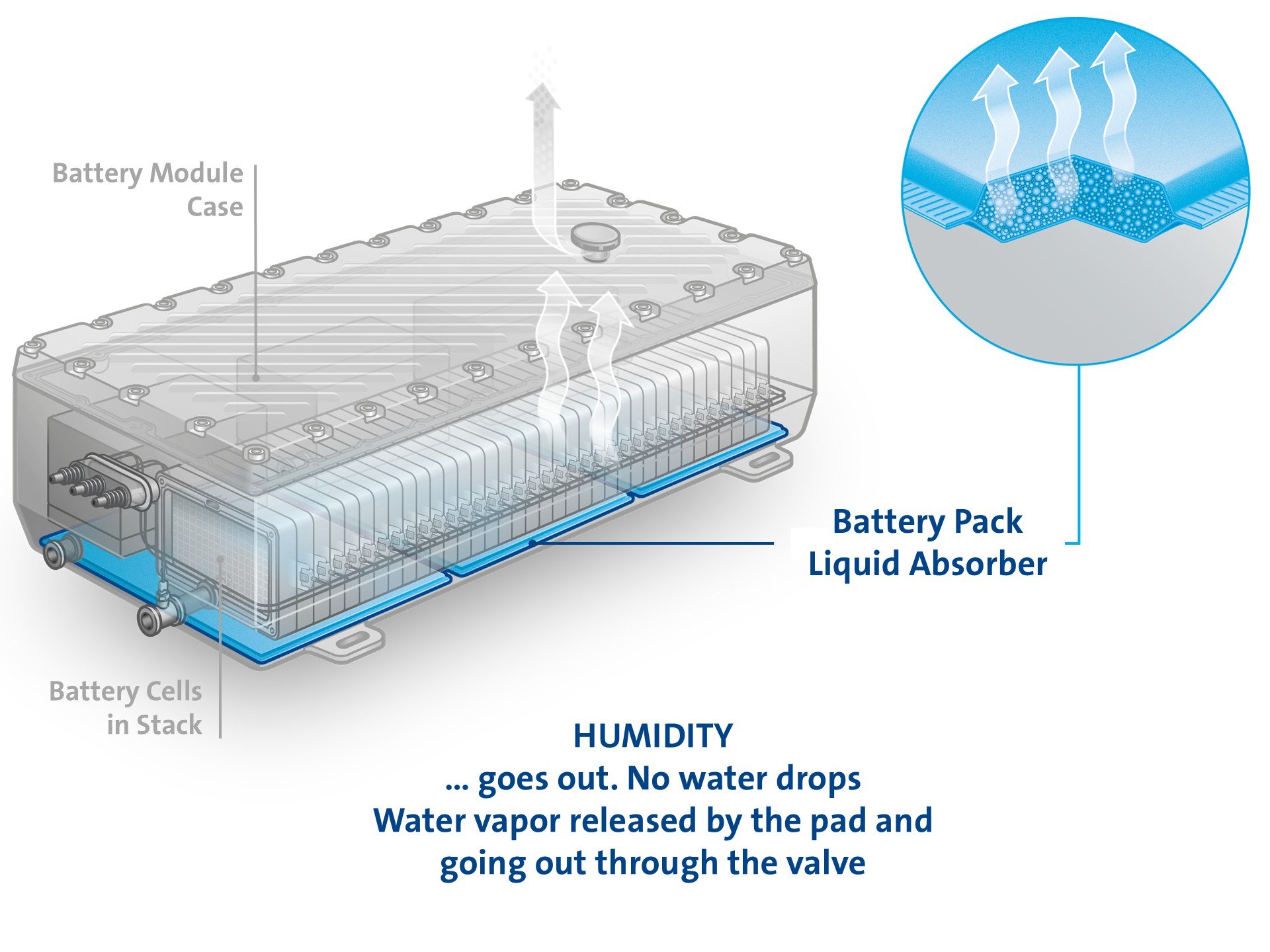

  • Long-lasting performance thanks to the re-drying capability
  • Fast coolant absorption and reliable retention in emergencies
  • Adjustable absorption capacity and customizable geometries
Energy Battery Pack Liquid Absorber Humidity out
Patrick Richly

Expert voice

“We are ensuring the functionality of your battery systems throughout their lifetime.“

Patrick Richly, Sales Manager New Business Development
Contact me on LinkedIn

Watch the video

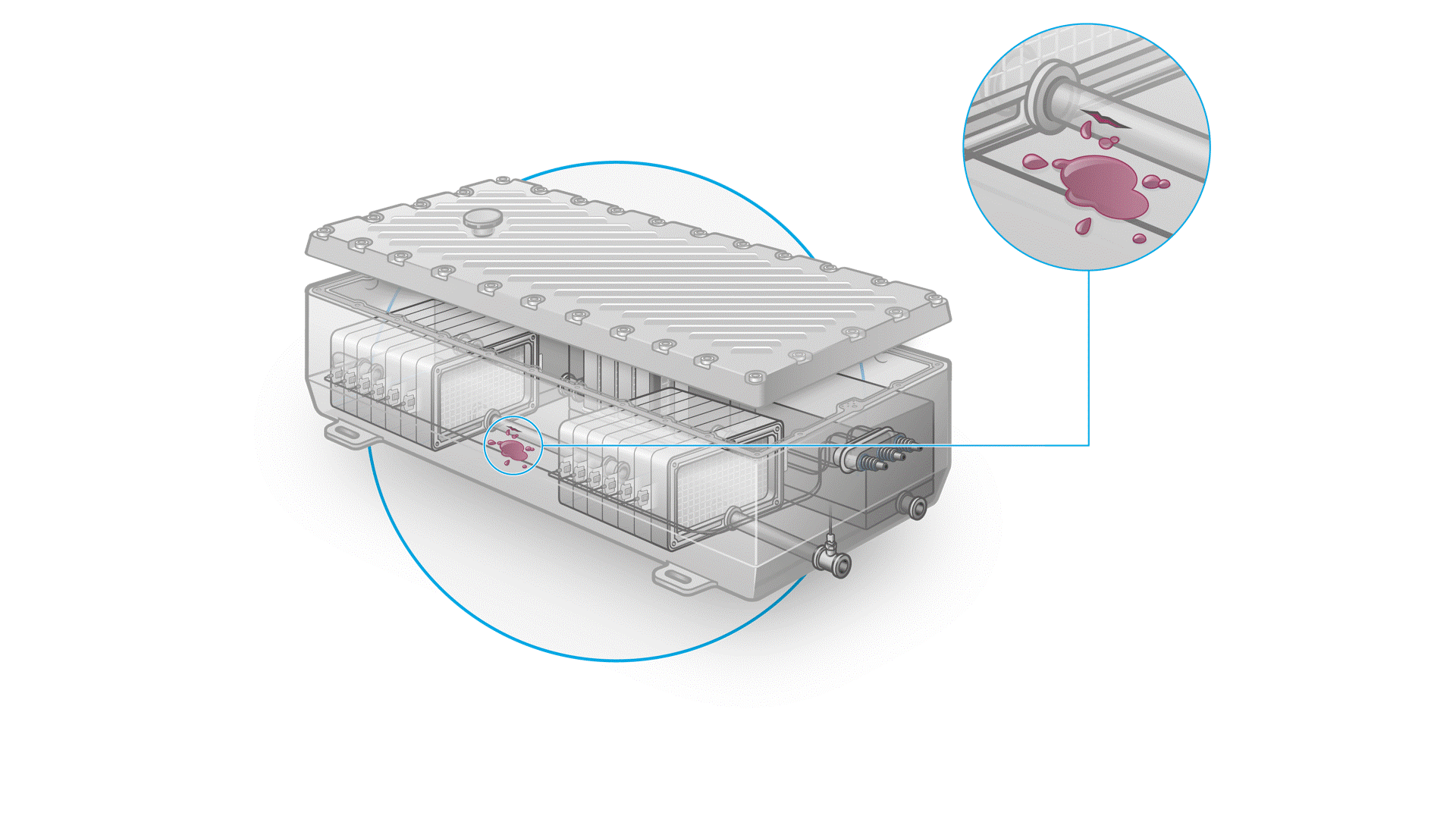

The challenge: condensate and leaking coolant

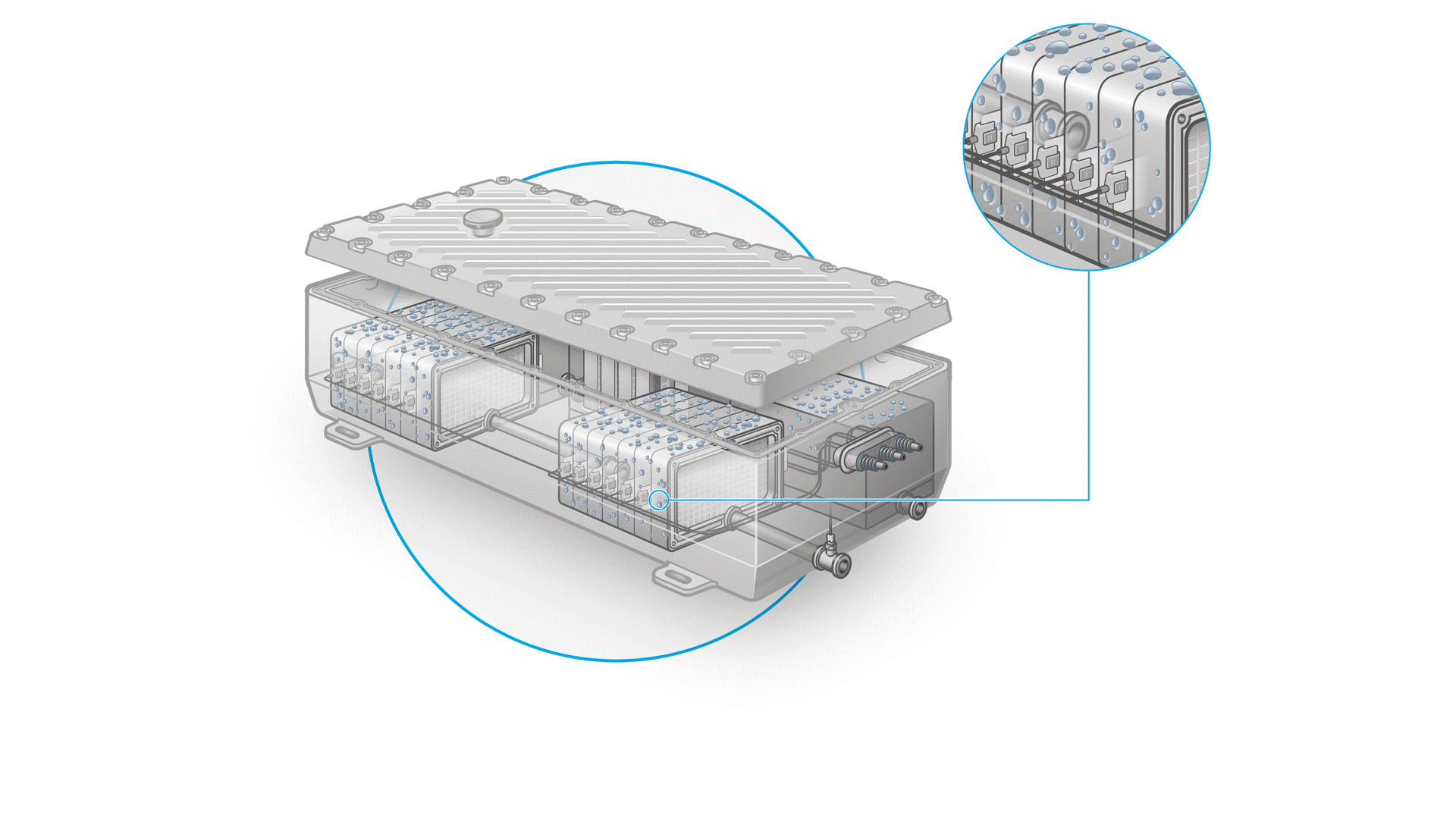

Liquids leaking inside a battery pack can result from various causes. One major factor is ambient humidity: air enters the battery pack, and moisture condenses inside the cooled system. Another issue is coolant leakage from the cooling system. In both cases, the absorbent fleece functions as a safety system, reliably capturing and retaining condensate and leaking coolant.

  •  Liquid Absorber Humidity

Absorbent pads reliably manage moisture and make electric vehicles safer

Freudenberg Performance Materials has developed its Battery Pack Liquid Absorbers as absorbent pads that can reliably capture and retain large volumes of liquid. The modular design enables scalable absorption capacity – limited only by the available space. Customer-specific geometries can even be implemented thanks to the flexible material.

Stable, long-term protection of the battery pack

The pads offer a durable solution for managing climate and moisture inside battery packs. The fleece material quickly absorbs condensate and stores it effectively. Even in an emergency, leaking coolant is quickly absorbed and reliably retained.
